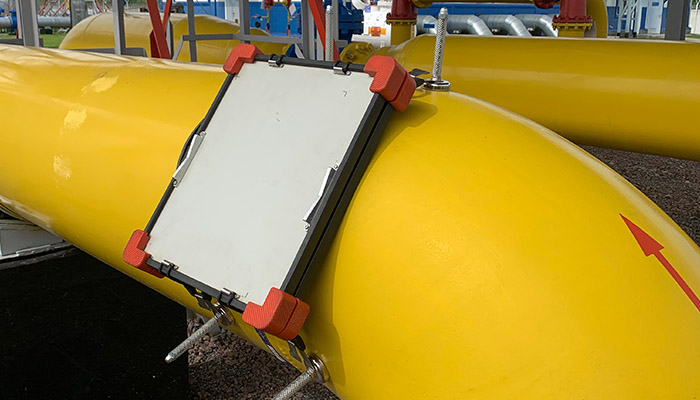

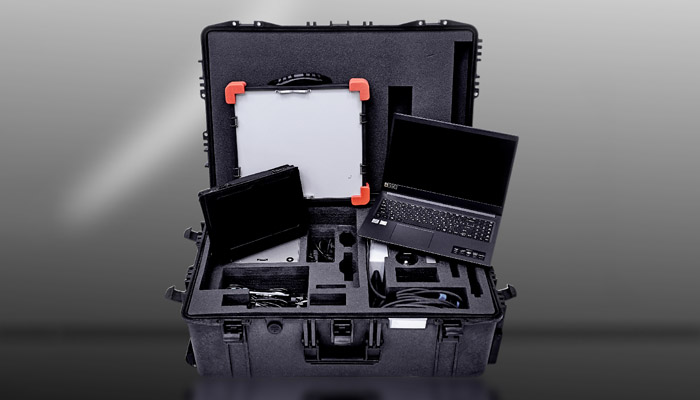

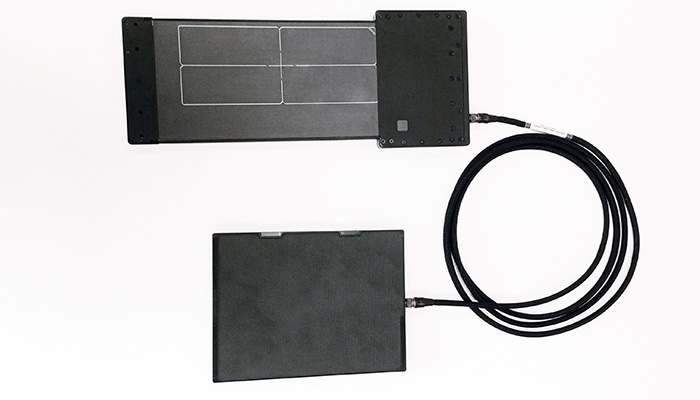

SCANRAY® is a portable wireless digital radiography system available in several specifications with different pixel pitch and active area sizes to fit the exact needs in non-destructive testing: from welds and corrosion inspection in the oil and gas industry to the most demanding quality control of components in the shipbuilding, aerospace and military spheres. The complex is designed for detecting defects in the structure of various materials using the NDT method with X-ray or Gamma-ray sources. Radiographic images obtained by the detector are transmitted to the operator's tablet or laptop in real time or accumulated in the internal detector's memory for later downloading.

Customized solutions (for example, semi-automatic systems for extended longitudinal welds inspection of reservoirs, ship bottoms and other large-distance joints) and additional accessories for special needs (brackets, holders, tripods, manipulators, etc.) are available upon request.

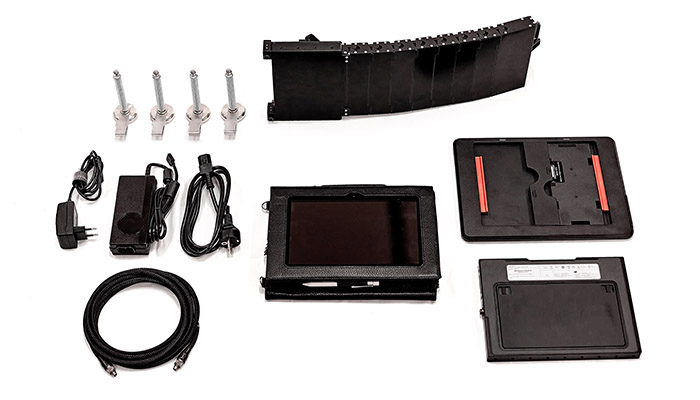

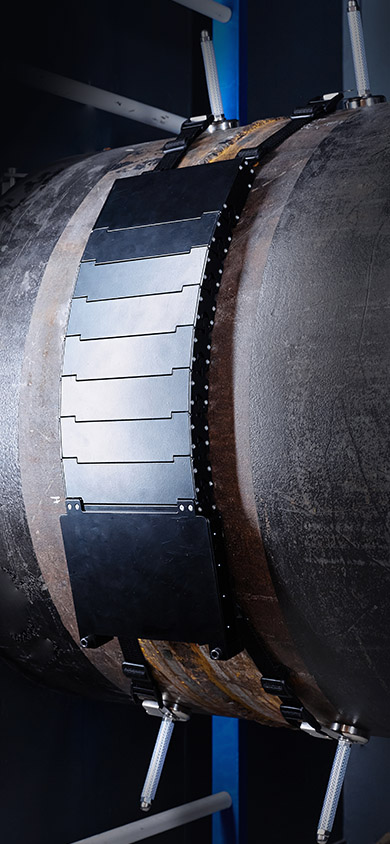

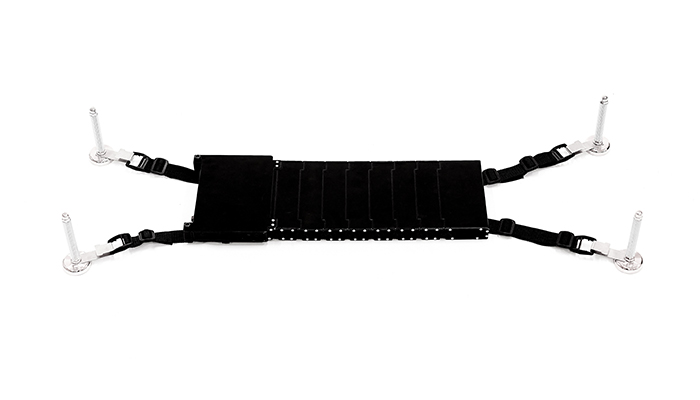

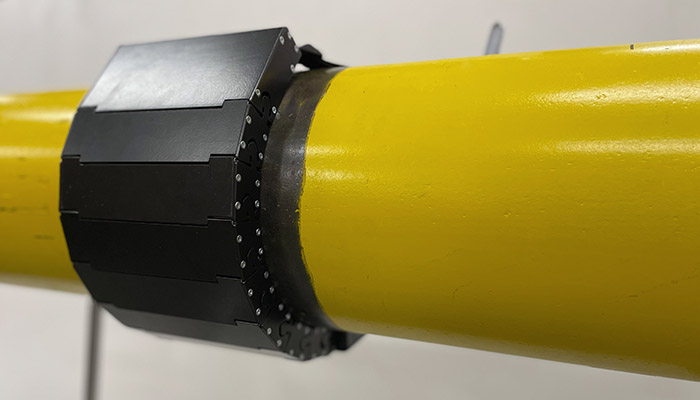

SCANRAY® F is a cutting-edge flexible (bendable) portable wireless DR system designed to revolutionize industrial radiographic testing of pipes and tanks. Traditionally, such inspections have relied on conventional X-ray films or flexible phosphoric imaging plates (computed radiography) due to their compatibility with curved surfaces. However, these methods pose challenges related to extended exposure times, intricate imaging processing procedures and dependence on consumables.

The complex SCANRAY® F addresses these limitations by offering a solution to eliminate image distortion on curved control objects, overcoming a significant drawback of ordinary digital flat-panel detectors. This innovative system not only provides a remedy to the inconvenience associated with conventional methods but also introduces a host of advanced features.

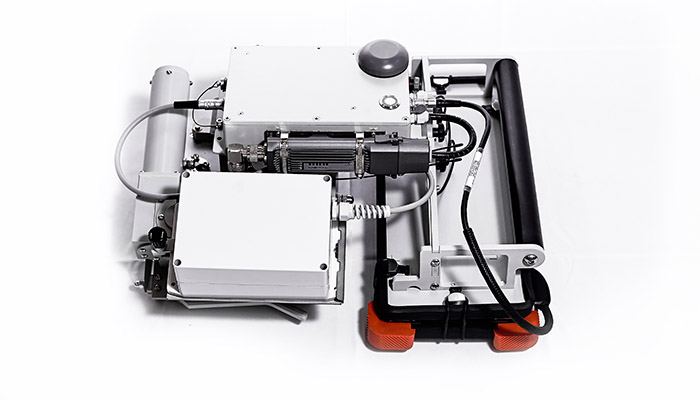

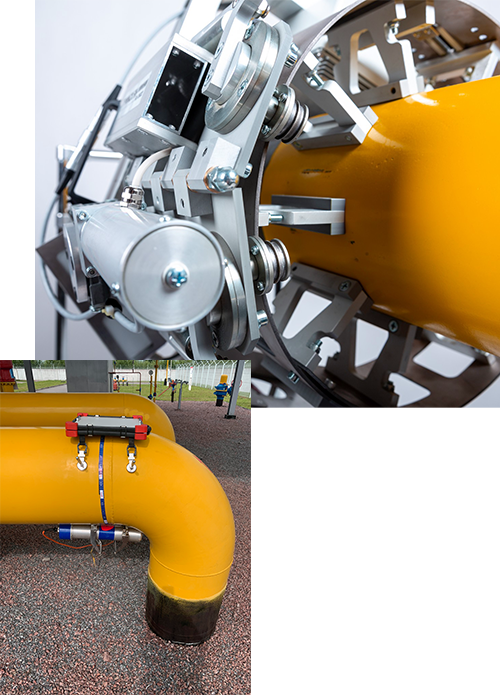

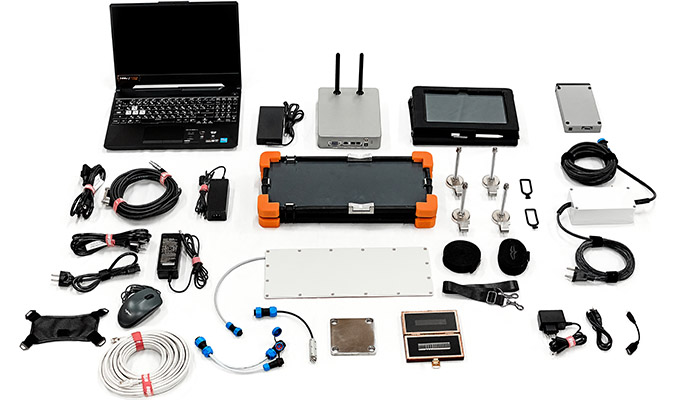

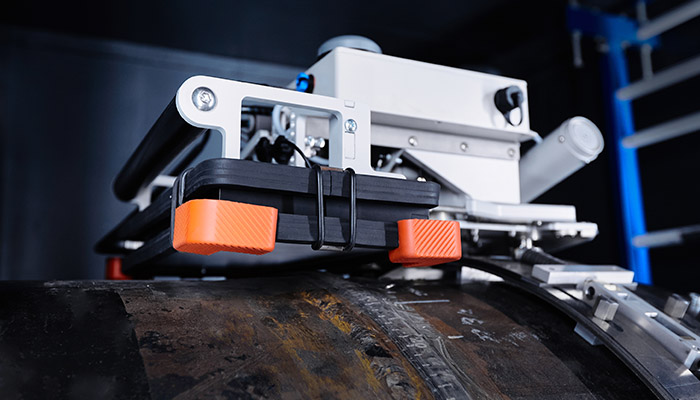

XPRESS-SCAN® represents a know-how mobile digital radiography system designed for automatic inspection of single- or double-wall pipe welds ranging from 273 mm (10 inches) and more in pipeline construction, maintenance or repair.

The complex aims to drastically enhance the speed of non-destructive testing, streamline operations and reduce the risk of human mistakes. Testing can be conducted immediately after welding, and instant results enable prompt adjustments to welding equipment settings should any defects be detected, ensuring they are not repeated in subsequent joints and thereby preventing project delays. Thanks to the minimal control time, the system provides a significant productivity boost in both onshore and offshore projects.

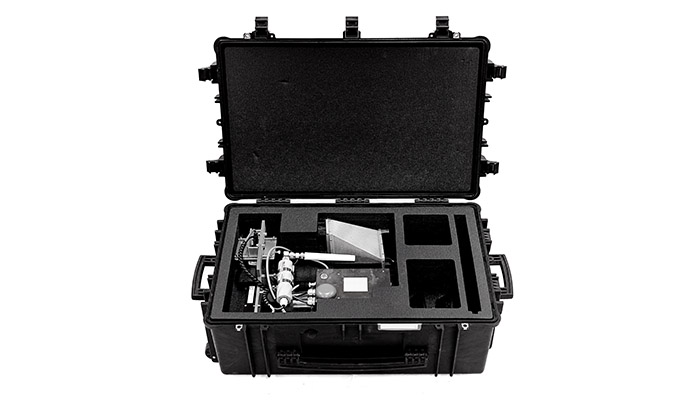

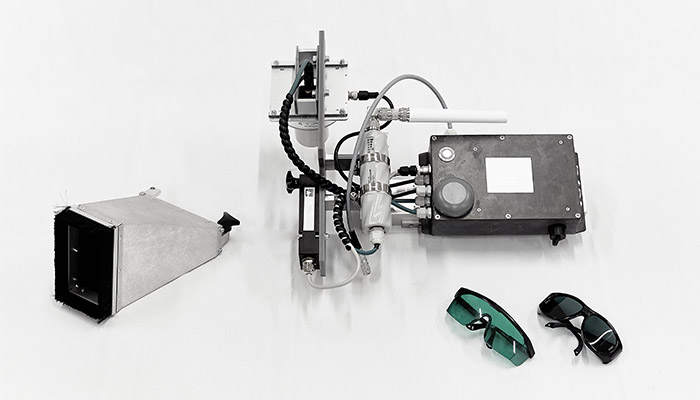

VISIO® system is designed for automated visual and dimensional inspection of circumferential weld joints of pipes from 300 mm (12 inches) and more. VISIO can be used either as part of the XPRESS-SCAN® digital radiography complex or as a standalone device. The main purpose of the system is to acquire, process, and archive digital profiles characterizing the shape and dimensions of weld joints.

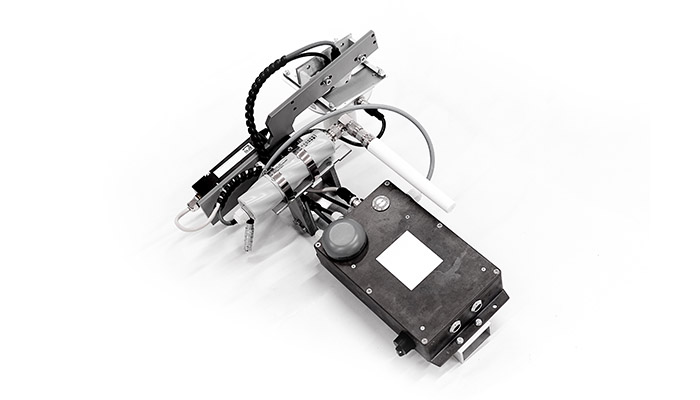

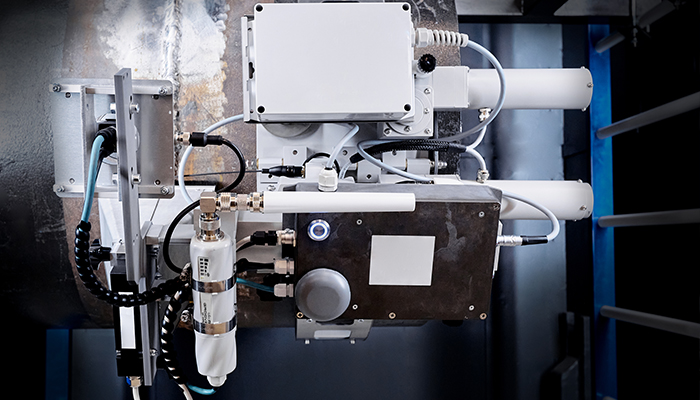

The unit consists of a laser triangulation 2D scanner mounted on a carriage, which moves along the annular weld on a pipe band according to a pre-set program. Inspection can be performed both with the module stationary and in motion: the carriage moves from one position to another, covering the entire weld joint. The control results of the weld joint are transmitted to the operator's PC in real-time wirelessly.

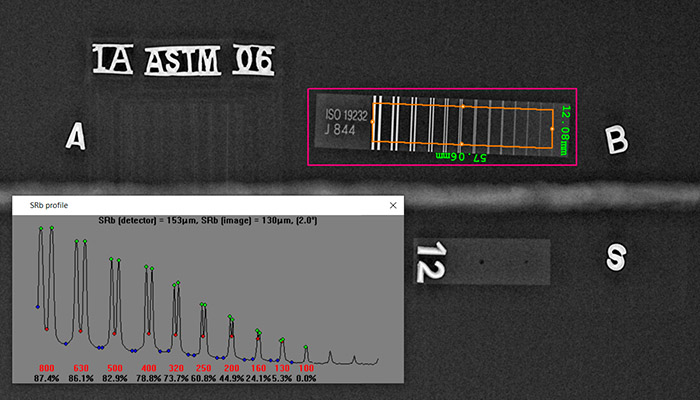

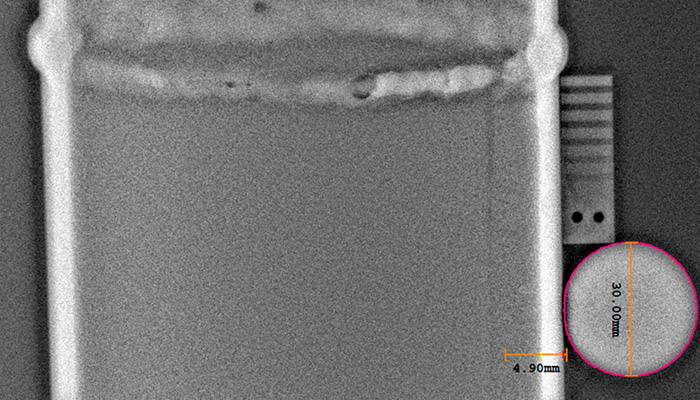

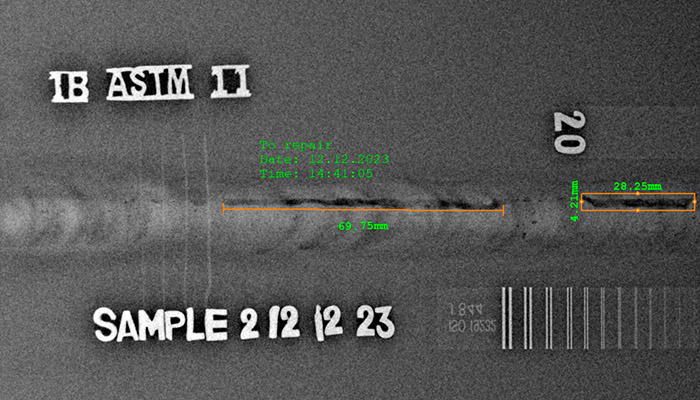

The powerful and user-friendly software is designed for obtaining static and dynamic radiographic images from various devices, processing the acquired images for clear and easy interpretation, measuring linear dimensions and grey levels, automated generation of inspection reports and archiving results in a database.

The software fully complies with the DICONDE standard ASTM E2339-21, allowing for carefully securing the data and preservation of additional information alongside images, such as material, thickness, pipe diameter, weld number, exposure parameters, date, time, and geographical coordinates of the capture location.
